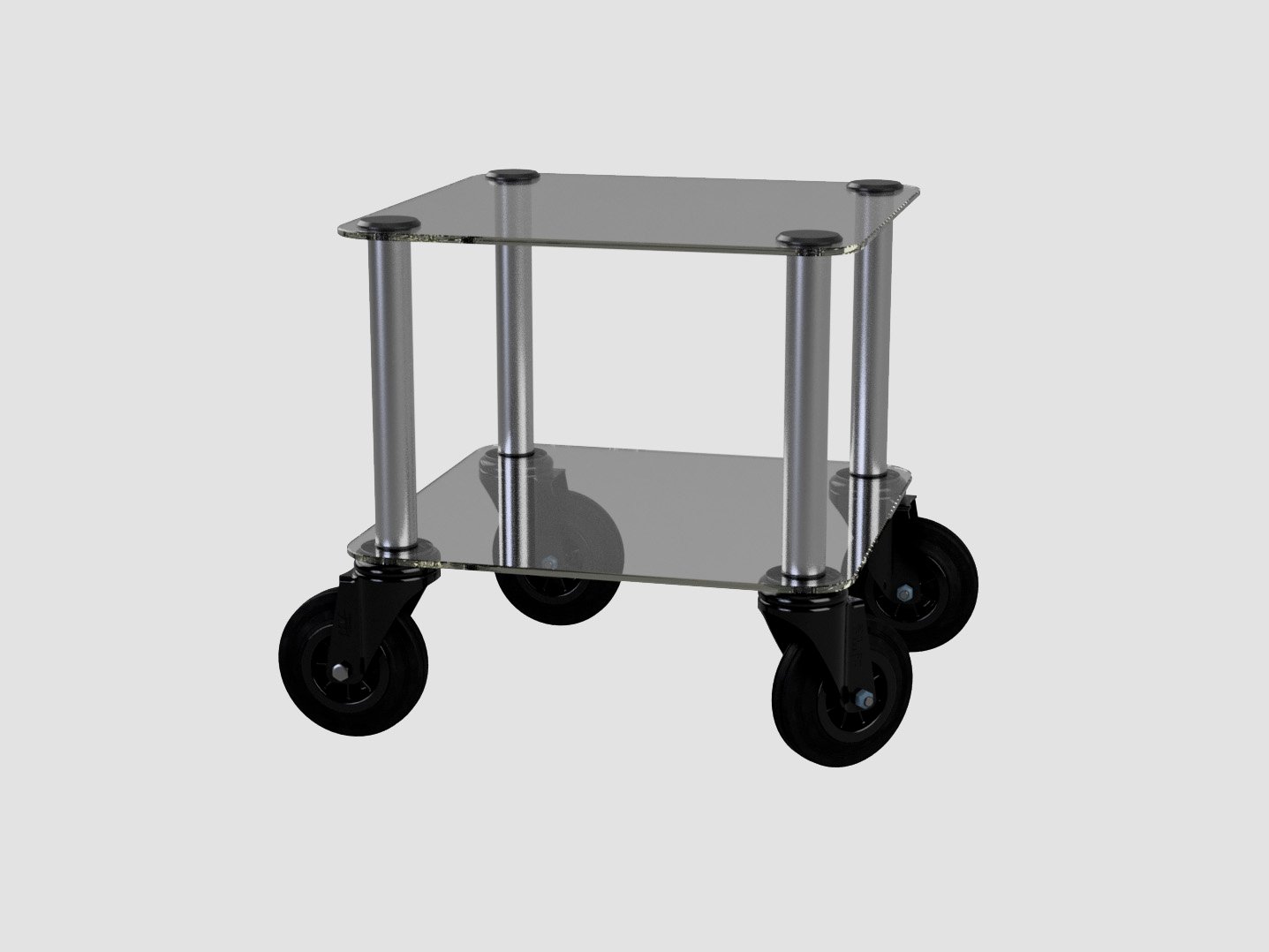

RNQ 41 25 VN

Main Features

Square tempered glass shelves, 6 mm thick.
The frame, made of satin-finish AISI 304 stainless steel tubes, is supported by four rubber swivel casters.
The caster supports are made of galvanized steel with a high-resistance black epoxy paint.
The metal parts are separated from the glass with spacers made of POM-C.
The entire unit is assembled with M8 stainless steel tie rods.
The total weight is 11.2 kg.
The unit of measurement is expressed in millimeters.
The effective load capacity of the shelves is a maximum of 16 kg.

N.B. The load capacity of the shelves refers to evenly distributed weight.
